Schüco AWS 70.HI Highly Insulated Aluminium Window System
About Schüco AWS 70.HI Aluminium Windows
The Schüco AWS 70.HI is a highly thermally insulated aluminium window system with a 70mm basic depth, and we make it to measure and install it on houses, apartments and commercial buildings across London and the South East. It suits projects that need one window platform that can handle punched openings, long ribbon windows and level-access window doors across the same elevation.

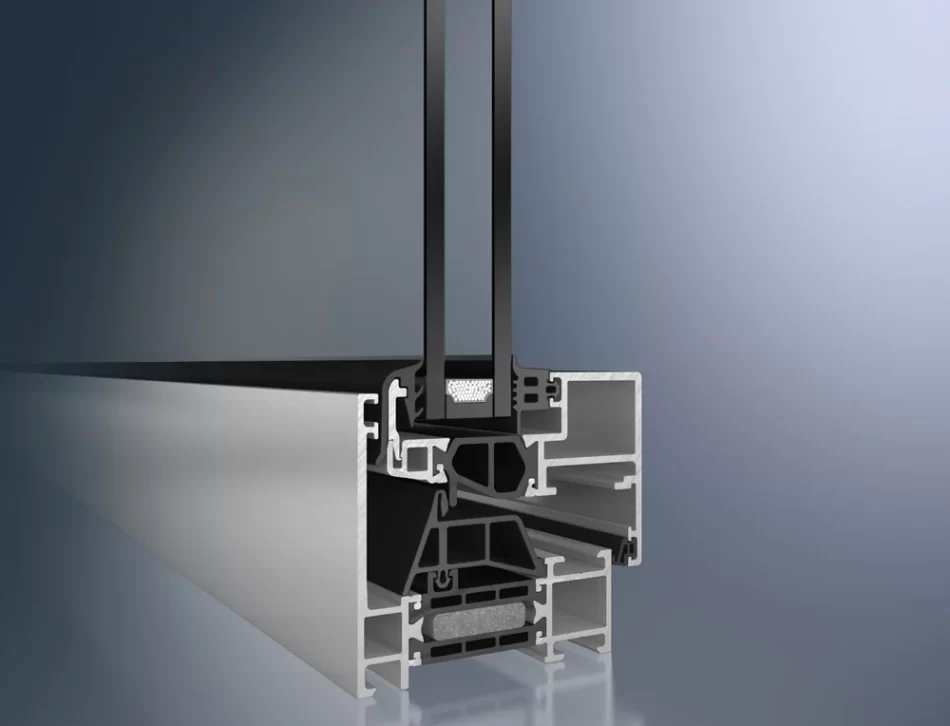

The .HI in the name stands for high insulation. Insulating zones in the profile give a frame U-value (Uf) from 1.6 W/m²K, and the frame takes glazing units up to 52mm thick, which leaves room for triple glazing where the energy target calls for it. The whole-window U-value depends on the glass and the window size, so we confirm it with the quote; in England, replacement windows in existing homes have to meet the Part L limit for windows.
On commercial buildings the AWS 70.HI is used for ribbon (strip) windows running along a floor, and for punched openings in office and mixed-use façades, with a choice of contour styles to suit the building. On homes it suits casement-style punched openings and full-height window doors with level access. Sashes can be inward or outward opening, bottom-hung, top-hung or fixed, carry up to 160kg, and can be built to burglar resistance class RC3 (WK3). Motorised opening is available, including remote control and night-time cooling for offices. Finishes cover the full RAL palette and anodised options.
Last reviewed 17 October 2026
Want a price for your opening?
Every set is made to measure, so the only way to a real number is your sizes. Free survey and quotation, no obligation.
Key features
- Highly insulated 70mm aluminium profiles, Uf from 1.6 W/m²K
- Ribbon (strip) windows for offices and commercial floors
- Punched openings and casement-style windows for houses and apartments
- Level-access window doors in the same system
- Glazing units up to 52mm, room for triple glazing
- Inward or outward opening, bottom-hung, top-hung or fixed
- Sashes up to 160 kg
- Burglar resistance up to RC3 / WK3
- Motorised opening, remote control and night-time cooling
- Choice of contour styles; full RAL palette and anodised finishes
Specifications
Frequently asked questions
Common questions about Schüco AWS 70.HI Aluminium Windows.
What does .HI mean on the Schüco AWS 70.HI?
High insulation. Insulating zones in the 70mm profile give a frame U-value (Uf) from 1.6 W/m²K, and the frame takes glazing units up to 52mm thick, enough for triple glazing.
Can the AWS 70.HI be used for ribbon windows on commercial buildings?
Yes. It is used for ribbon (strip) windows along office floors as well as punched openings in houses and apartments and level-access window doors, so one system can cover a whole elevation.
Which opening styles does the AWS 70.HI come in?
Inward or outward opening, turn-tilt, bottom-hung, top-hung and fixed, with sashes up to 160kg and a choice of contour styles.
How secure are AWS 70.HI windows?
They can be built to burglar resistance class RC3 (WK3) under EN 1627.
Can AWS 70.HI windows be motorised?
Yes. Automation is available, including remote control and night-time cooling, which suits offices that want to purge heat overnight.
How do I get a quote for AWS 70.HI windows?
Quotes are free. Send your window sizes and quantities through the contact form or call 0800 999 5575; for commercial projects, include the window schedule and programme dates.
